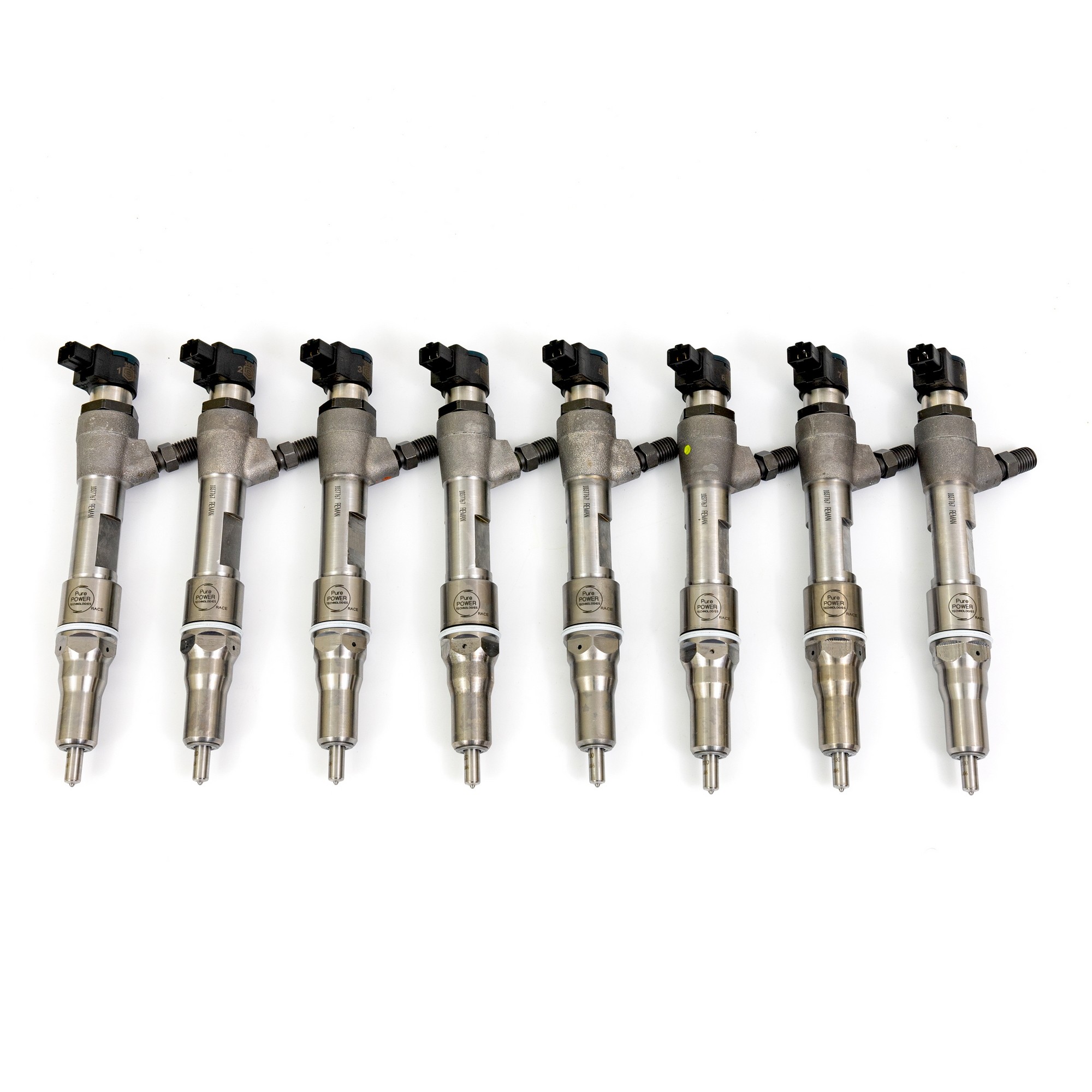

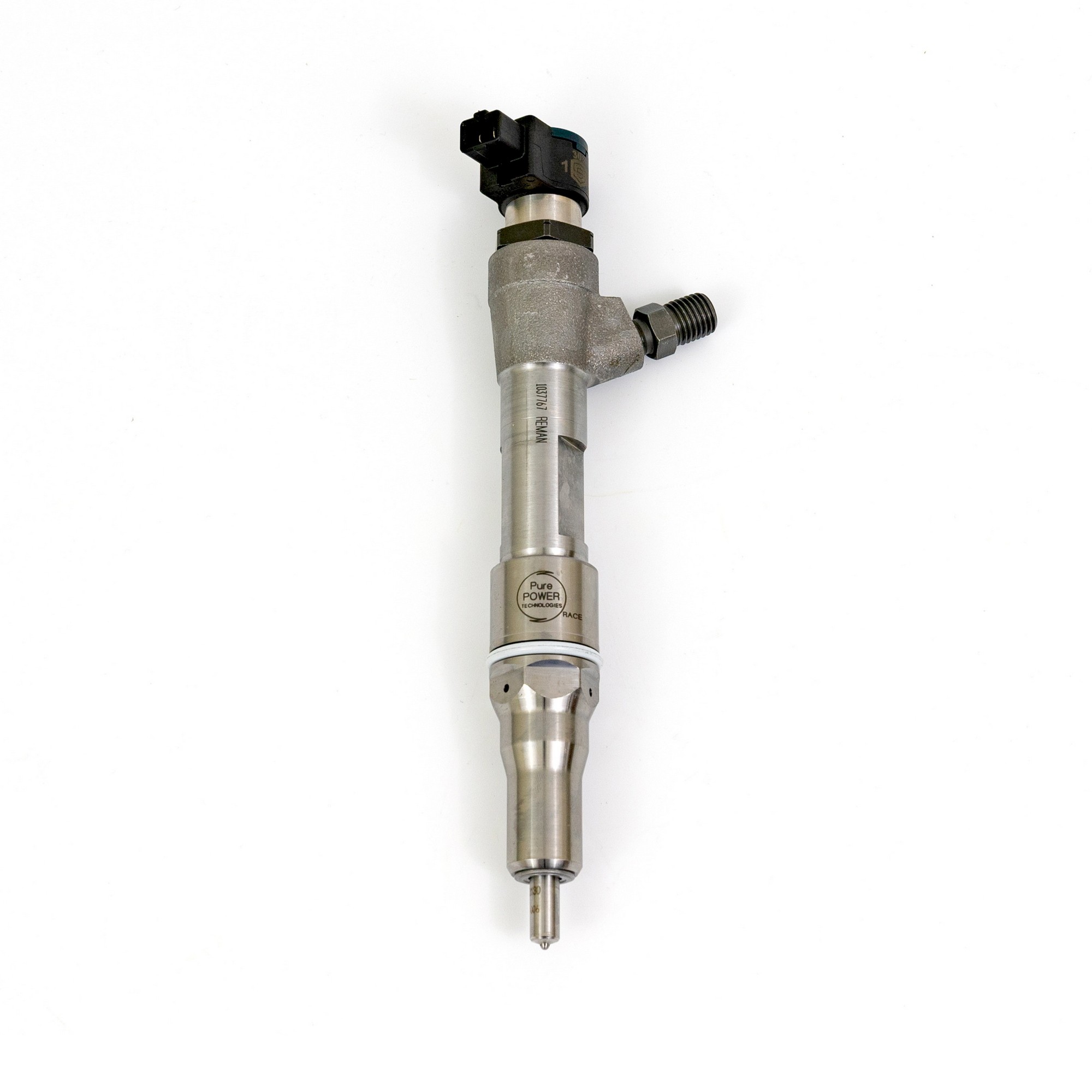

6.4L Ford Power Stroke (2008-2010). Injector build spec custom-matched to nozzle flow rate for each size, which includes internal modifications (piezo mod)

S&S Upgrades

• Proprietary nozzle honing process for clean and consistent holes
• Nozzles flow-matched to 1 percent variance per set, using OE standards
• Viscor SAE-J967
• 40 degrees C
• 100 bar
• Injectors flow-matched to 3 percent variance per set
• Viscor SAE-J967
• 40 degrees C
• 4 different pressure/energizing points per injector
• Injection profiles (rate shape) aligned

Options

• The industry has adopted a percent increase in nozzle flow over stock as the sizing convention
• Available sizes: Stock, 30 percent, 45 percent, 60 percent, 80 percent, 100 percent
• Core returns required for 6.4L Ford injectors - $150 charge if no core returned.

Details:

• Engine Manufacturer: Power Stroke
• Liter: 6.4
• Engine Years: 2008
• Fuel Type: Diesel
• Size: Stock
• Sold As: Each
