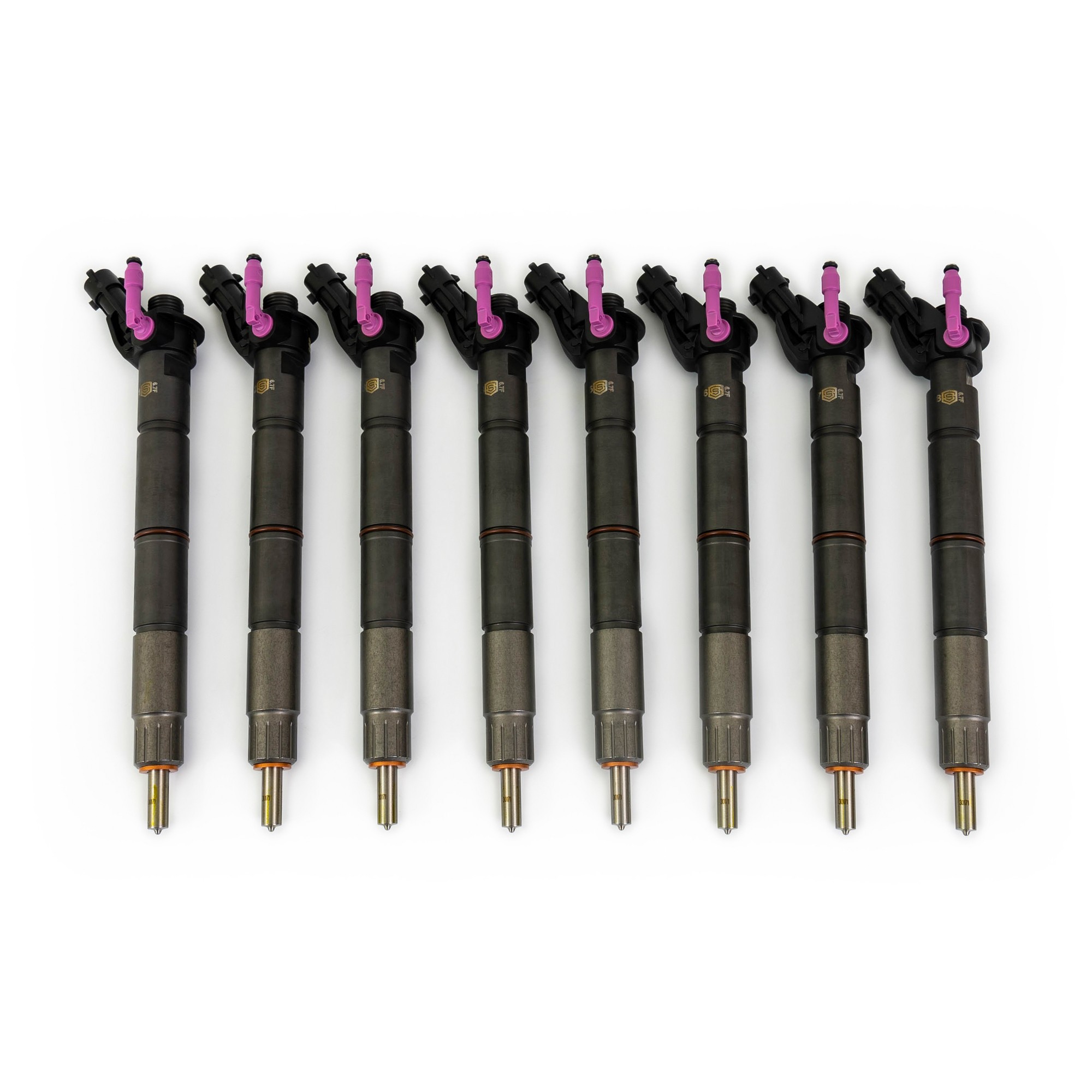

6.7L Ford Power Stroke Injectors (2020-2022) Injector build spec custom-matched to nozzle flow rate for each size, which includes internal modifications (piezo mod)

S&S Upgrades

• Proprietary nozzle honing process for clean and consistent holes
• Nozzles flow-matched to 1 percent variance per set, using OE standards
• Viscor SAE-J967
• 40 degrees C
• 100 bar
• Injectors flow-matched to 3 percent variance per set (except TorqueMaster)
• Viscor SAE-J967
• 40 degrees C
• 4 different pressure/energizing points per injector
• Injection profiles (rate shape) aligned

Options

• The industry has adopted a percent increase in nozzle flow over stock as the sizing convention
• Available sizes: TorqueMaster, 50 percent, 100 percent, 150 percent, 200 percent

Details:

• Engine Manufacturer: Power Stroke
• Liter: 6.7
• Cylinders: 8
• BlockType: V
• Fuel Type: Diesel
• CC: 6651
• CID: 406
• Engine Bore Inches: 3.9
• Engine Bore Metric: 99.1
• Engine Stroke Inches: 4.25
• Engine Stroke Metric: 107.9
• Engine Years: 2020-2022
• Size: 100 Percent Over
• Sold As: Each
